Our specialist machines
CNC MACHINING | CNC MILLING | CNC TURNING | CNC Slotting
Since 1999, Total C.A.M Solutions has been providing precision CNC machining services right here in Perth. At Total C.A.M Solutions, we have a large CNC machining capacity in-house. Our machining includes CNC turning, CNC milling, and CNC wire cutting.
We currently have 24 CNC machines, a CNC EDM wire cutter and a SPI Fibre Laser. With continuous investment in new technologies a priority for Total CAM Solutions, we will have a new full 5 axis fully integrated state of the art CNC machining centre arriving next June. A sample of our machines can be seen below.

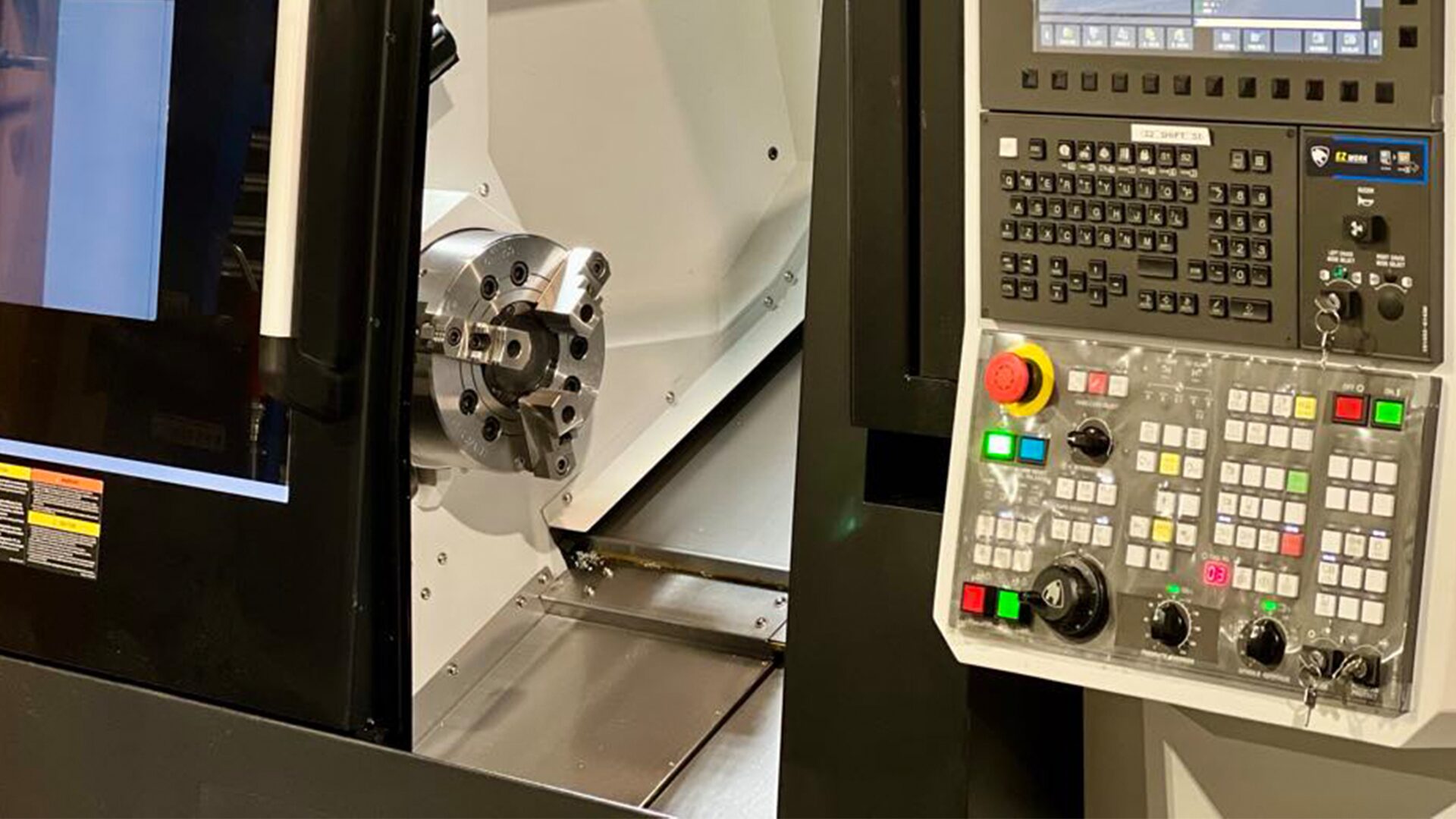

Doosan Puma 2600Y
CNC Turning Centre
The team at Total C.A.M. Solutions are excited to announce that our latest machine the Doosan Puma 2600Y CNC Turning Centre has arrived and is now fully operational here in our Wangara premises.
The machine specifications include:
▪ 680mm Swing Inside Guarding
▪ 630mm Swing Over Saddle
▪ 376mm Turning Diameter
▪ 760mm Turning Length
▪ 105mm (±52.5mm) Y Axis Travel
▪ 81mm Bar Capacity
▪ 255mm Dia Hydraulic Chuck
▪ 3500RPM Spindle Speed
▪ 22kw Spindle Power
▪ 240Nm Spindle Torque
▪ 12 Station Turret (25mm Square/50mm Dia Tool Capacity)
▪ 7.5kW, 5000RPM, 95.5Nm Live Tool Performance
▪ ER32 Live Tool Collet Size
DNM6700XL Siemens Control
5 axis machining axis
400 3AC Vertical

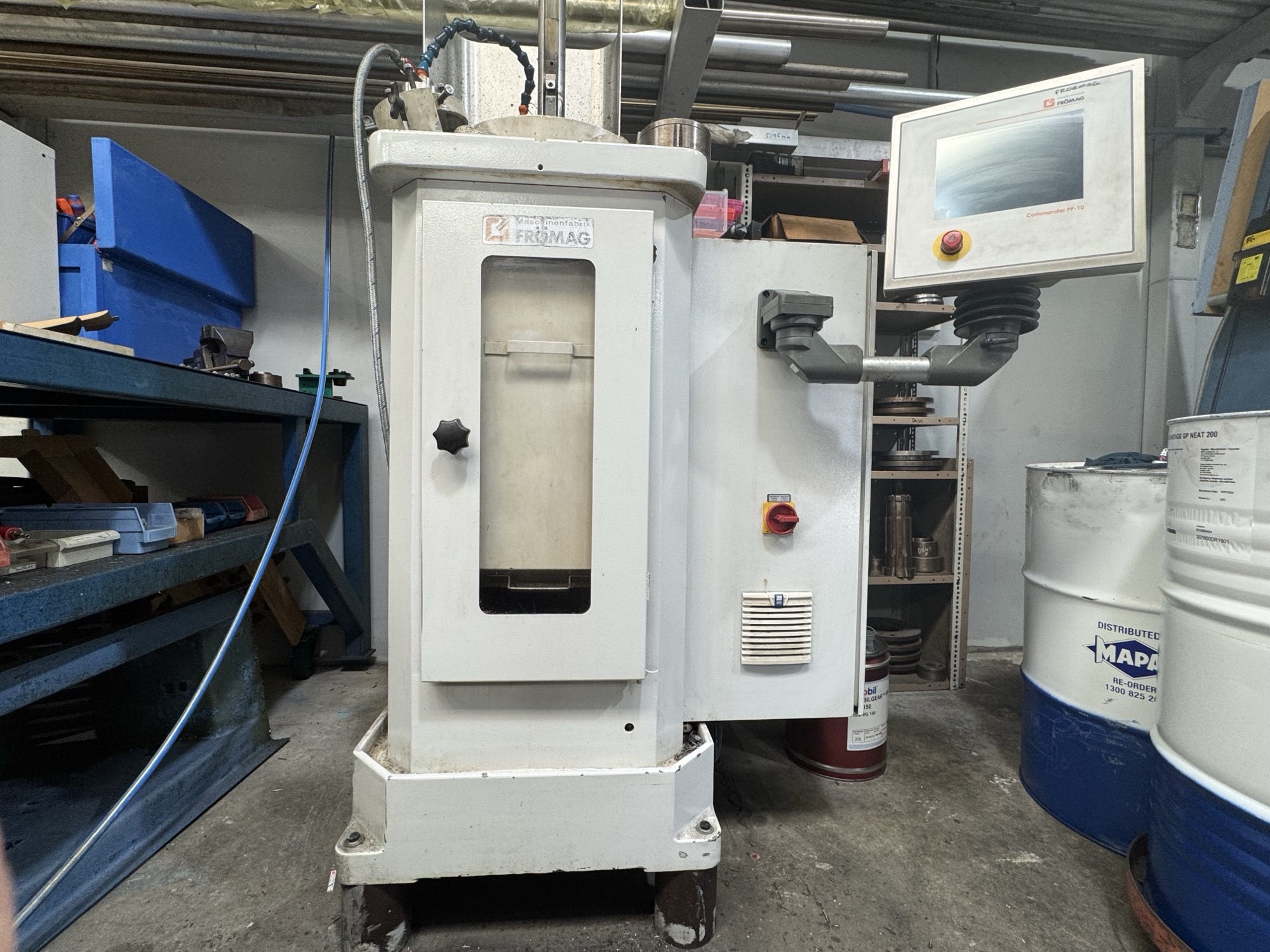

CNC Slotting Machine
Fromag Slotting Machine

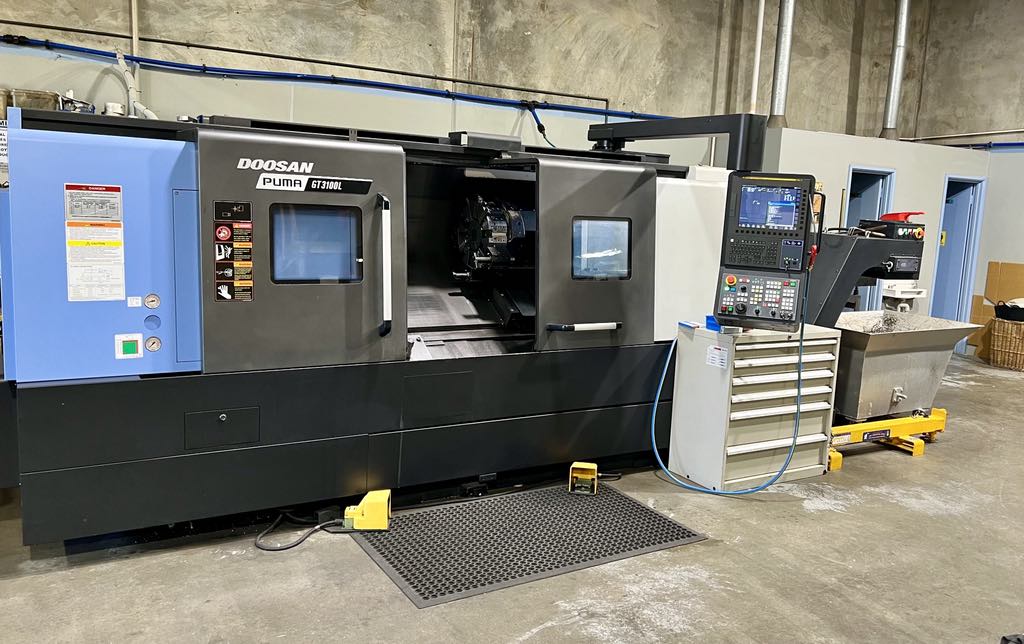

Puma 3100 CNC
Machine
The PUMA GT 3100 L Series will instantly improve your productivity with high-speed turret indexing and lightning-quick rapid traverse rates keep cutting time maximised. We’ve also purchased a CNC steady rest 50mm – 200mm diameter capacity which allows us the option to machine long shafts.

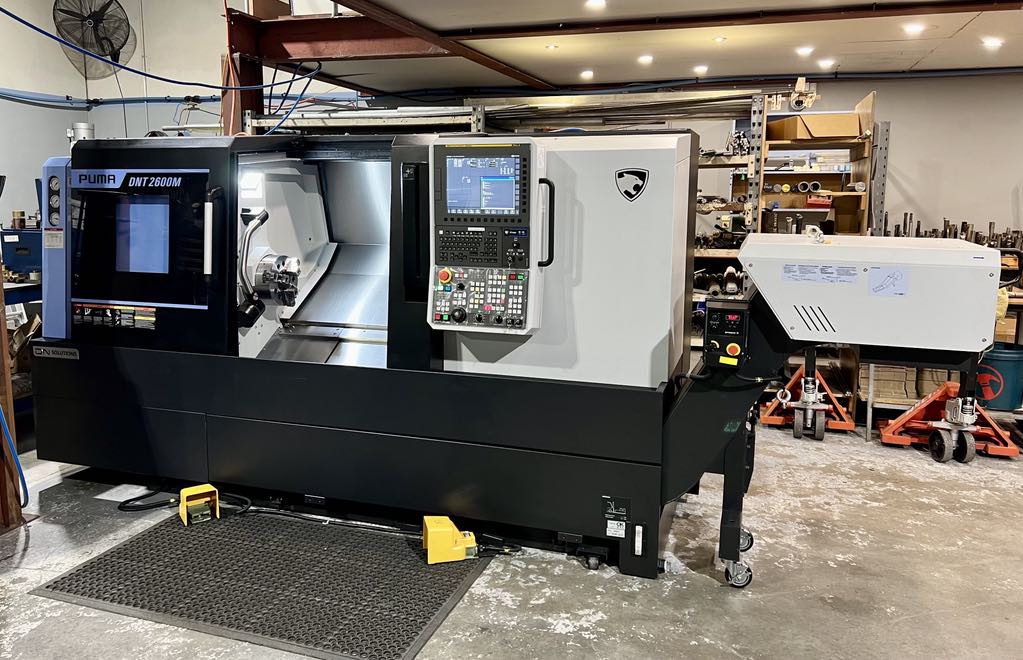

Doosan Puma DNT2600
We currently have two Doosan Puma DNT2600s at our Wangara premises.
The series is equipped with the most powerful spindle in its class. The new machine offers high performance.
